hi my names benny and i am new to this site,

i drive a mk2 xr2 ,into which i am currently,putting an 1800 zetec in,i am using a wiring loom from an si,the problem i have is with the grey 12pin plug that joins the car loom

this is wat i think is rite ,can anyone confirm
1=brown=earth
2=green=rev counter
3=brown=fuel pump relay earth
4=black=4amp ignition live
5=black/red=fuel pump live
6=red=ecu power
7=brown=earth
8=brown=earth
9=brown/white=temp guage
10=blank
11=blank
12=brown=earth

_________________

Last edited by benny947mud on Mon Mar 10, 2008 1:29 pm, edited 3 times in total.

Top

fiestafletch

Post subject:

Posted: Sun Mar 09, 2008 6:51 pm

The Nude Numpty

Joined: Thu Jan 25, 2007 9:46 pm
Posts: 1064
Location: Dorset

_________________

Top

happypaul

Post subject:

Posted: Sun Mar 09, 2008 6:54 pm

Donator? Ejaculator!

Joined: Thu Mar 30, 2006 1:23 pm
Posts: 11348
Location: Lincoln
Drives:

_________________
Daily isn't so Special. And it makes me sad.
Need space and time and I'll crack on with Jams si!

Catch me on Facebook as I'm rarely on here.

Top

benny947mud

Post subject:

Posted: Sun Mar 09, 2008 7:03 pm

New Member

Joined: Sun Mar 09, 2008 12:03 pm
Posts: 19

_________________

Top

benny947mud

Post subject:

Posted: Mon Mar 10, 2008 10:06 am

New Member

Joined: Sun Mar 09, 2008 12:03 pm
Posts: 19

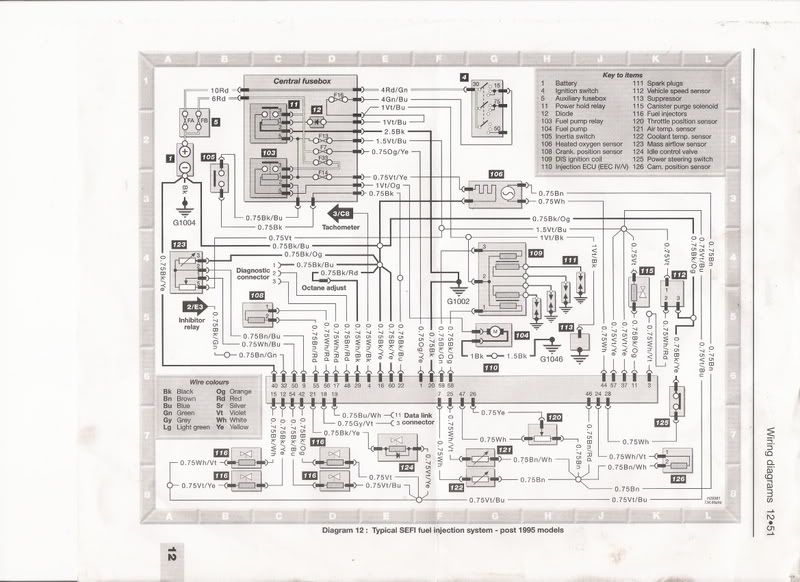

ive been told that this is the corect diagram but the colours are different

surely some one has the answer,wat i need to know is wat ive put above is correct

_________________

Top

james_rs

Post subject:

Posted: Mon Mar 10, 2008 9:01 pm

FSi Donator

Joined: Mon Jun 19, 2006 10:22 am
Posts: 1503
Location: Hertford, Hertfordshire
Drives:

_________________
- A forum dedicated to the Fiesta Mk7 - 1 year old and going strong!
Info and guides on the Mk3 Fiesta

I like boost! Formerly cookie456_the2nd

Top

benny947mud

Post subject:

Posted: Tue Mar 11, 2008 1:40 am

New Member

Joined: Sun Mar 09, 2008 12:03 pm
Posts: 19

_________________

Top

happypaul

Post subject:

Posted: Tue Mar 11, 2008 1:33 pm

Donator? Ejaculator!

Joined: Thu Mar 30, 2006 1:23 pm
Posts: 11348
Location: Lincoln
Drives:

I would have thought the easiest way would be to fit the whole si loom, therefore no fafing with any pins.

_________________
Daily isn't so Special. And it makes me sad.
Need space and time and I'll crack on with Jams si!

Catch me on Facebook as I'm rarely on here.

Top

onslack

Post subject:

Posted: Tue Mar 11, 2008 1:51 pm

The Sherminator!

Joined: Sun Mar 06, 2005 6:10 pm
Posts: 22224
Location: Somewhere

Top

DANIELP1991

Post subject:

Posted: Tue Mar 11, 2008 3:56 pm

Elite FSI Poster

Joined: Fri Sep 21, 2007 12:55 pm
Posts: 3034
Location: Blackwood, south wales
Drives:

_________________

Suzuki Ignis Sport - ITG Maxogen - Japspeed 4-1 - Decat - 2" custom single box Scorpion exhaust 3" tip - Magnecor leads - Air con Removed - Apex 35mm springs - OMP Strut brace - Whiteline rear arb - EBC Greenstuff front pads - MTEC grooved/drilled discs - Team Dynamics Pro rally 15X6J ET28 - Toyo tyres - Rallyflapz - Black lamps - Smoked repeaters - Sparco pedals - Stripped 40kgs rear interior
125.4BHP 126.6LBFT

Top

benny947mud

Post subject:

Posted: Tue Mar 11, 2008 5:13 pm

New Member

Joined: Sun Mar 09, 2008 12:03 pm
Posts: 19

im looking for the pinout on the engine loom where it joins the car loom,

im from pontypool ,trust me if seen my car u recognise it again
[img]http://i206.photobucket.com/albums/bb239/benny947mud/DSCF0004.jpg[/img*]

please resize to 800x600 - onslack

my fave pic
